Jamma Pinout

Solder Side     Parts Side
GND A 1 GND
GND B 2 GND
+5v C 3 +5v
+5v D 4 +5v
-5v E 5 -5v
+12v F 6 +12V
KEY  H 7 KEY
coin counter #2 J 8 coin counter #1
lock out coil #2 K 9 lock out coil #1
speaker (-) L 10 speaker (+)
  M 11
video green N 12 video red
video sync P 13 video blue
service switch R 14 video gnd
tilt switch S 15 test switch
coin switch #2 T 16 coin switch #1
2p start U 17 1p start
2p up V 18 1p up
2p down W 19 1p down
2p left X 20 1p left
2p right Y 21 1p right
2p button 1 Z 22 1p button 1
2p button 2 a 23 1p button 2
2p button 3 b 24 1p button 3
  c 25
  d 26
GND e 27 GND
GND f 28 GND

The following image Courtesy of  http://www.spies.com/~arcade

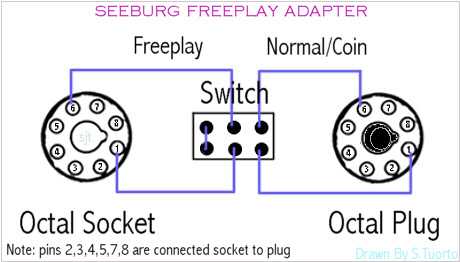

EARLY SEEBURG JUKEBOX FREEPLAY ADAPTER


freeplay adapter
To use this you just unplug the 8 pin plug in your jukebox and plug the above between the existing cable and socket.
Flip the switch one way and it's freeplay the other and it's normal operation.

constructed adapter

It can be built like this or put into a box.


This adapter circuit should work for all  M100A, M100B, M100BL, M100C, HF100G, HF100W, HF100R, HF100J, and HF100JL.
Unlike a version that is being sold on ebay this circuit will not release a single button press.
In other works if one key (letter or number) is pressed and a second is not the latch solenoid will remain on and not release.

It works by supplying a ground to the selector leaf switches which latches the selector solenoid. As long as the letter / number combo is completed the buttons will release and credit light will go off.

When time permits I will enhance this by adding a time out ct to disable the above if selection is not completed in a set time.
Which could be adjusted.

If anyone has the time and adds the time-out feature let me know, I'll include it here.

<>BTW a lot has been made about  a 1 key press not releasing and damaging the solenoid or worse. Suggesting a Child could press a single key and leave it that way. This should never really be an issue in your home.

Someone pointed out an ebay ad to me, showing a pre-constructed adapter, with the following statement

"Don't fall for that cheap adapter plug!  You can still burn out the solenoid with that cheap adapter.  Spend the extra $20.00 before you machine goes up in flames!!  Mine is ONLY safe way to protect your Seeburg!"

This is just a scare tactic, and very misleading.
If  you are handy and can build the adapter above it will work fine. If not, buying the marketed one  is an alternative

<>The damage the  seller is describing could  actually happen on normal coin operation without an adapter, and Seeburg designed their system so it could be left on for an extended period without damage.
Could the solenoid fail if left on for a day or days, sure.

However, as with all vintage electronics it is wise to connect them to a power strip, so when not in use they are not powered at all.
This eliminates any concerns for major failures when not in use.
So, the solenoid will NEVER be engaged for an extended period of time and NEVER fail because it got too hot.

Note:
Although not practical, ALL electronics should be on a power strip and turned off when not in use. Modern electronics, even when turned off are actually still on.
Some circuitry must stay on to power clocks and remote circuits. Often these more modern products use circuitry to eliminate the use of power transformers.
This leads to these products easily damaged when power surges occur.


.

Here is a simple circuit to help test a Seeburg Tormat System
